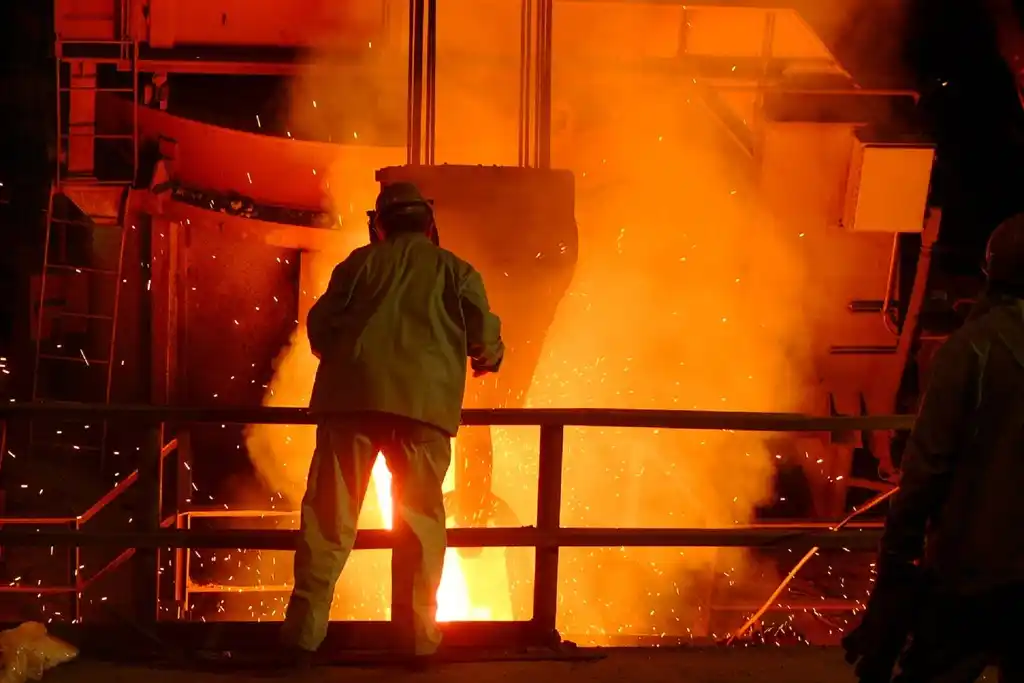

A steel mill is a crucible of extreme forces. The combination of intense heat, heavy loads, severe shock, and abrasive dust creates one of the most challenging environments for any mechanical component. For critical equipment like casting cranes (hot metal cranes), charging machines, and rolling mills, the braking system is not just a functional part—it is the ultimate line of defense against catastrophic failure.
This technical guide outlines the severe operational demands of steel mill applications and details how to select robust braking systems engineered to thrive in these conditions.
The Ultimate Challenge: Brakes for Casting and Hot Metal Cranes
Transporting ladles filled with molten metal is the highest-risk lifting operation in a steel mill. The brakes on these cranes, particularly the main hoist, must provide absolute, unquestionable reliability.
- Primary Requirement: Fail-Safe & Redundant Design. Brakes must be fail-safe (spring-applied, power-released) and often installed in a redundant configuration (e.g., two brakes on the hoist drum). This ensures that even if one brake or its control system fails, the other can safely hold the load.
- High-Torque Electro-Hydraulic Drum Brakes: Our YWZ9 and YWZ13 Series Electro-Hydraulic Block Brakes are the workhorses for this application. Built with a heavy-duty steel frame, they are designed to withstand high shock loads. The YWZ13, for example, can deliver a braking torque up to 12,500 Nm, providing the immense stopping power required for ladle cranes. They are equipped with high-performance, asbestos-free friction linings that maintain a stable friction coefficient even at elevated temperatures.
- High-Performance Hydraulic Disc Brakes: For the most demanding applications, our SDBH_I Series Hydraulic Fail-Safe Disc Brakes offer superior performance. Their open design allows for rapid heat dissipation, a critical advantage when dealing with radiant heat from molten metal. With modular caliper designs, they can be scaled to provide massive braking force, making them ideal for the main hoists of the largest casting cranes.
[Ensure Ladle Safety: Discover our YWZ9/YWZ13 and SDBH_I Series Brakes]
Withstanding Heat and Dust: Brakes for Cokemaking and Rolling Mills
Coke oven machinery (like pusher cars and quench cars) and rolling mill equipment operate in environments with high ambient temperatures and significant metallic dust. Brakes here must be both heat-resistant and sealed against contamination.
- Robust Construction: Brakes for these areas must feature durable construction with high-quality pivot pins and self-lubricating bushings to resist seizure from dust and heat. Our standard drum brakes, such as the YWZ4 Series, are built to these exacting standards.
- Pneumatic Caliper Disc Brakes for Rolling Mills: Rolling mills often require brakes for tension control and emergency stops. Our CQP and QP Series Pneumatic Caliper Disc Brakes are an excellent choice. Their simple, robust design is easy to maintain, and they can be fitted with special seals and high-temperature linings to withstand the harsh conditions. The pneumatic operation provides a fast response time, critical for emergency stop functions.
[Maintain Control in Harsh Environments: Explore our Pneumatic Caliper Brakes]
Key Features for Metallurgical Brakes: What to Look For
When selecting a brake for a steel mill, go beyond the torque rating. Look for these critical features:
- High-Temperature Friction Material: Ensure the brake linings are rated for high temperatures and are asbestos-free to comply with modern safety and environmental standards.
- Heavy-Duty Steel Construction: Cast iron can be brittle. A welded steel frame provides superior resistance to shock and vibration.
- Sealed and Self-Lubricating Pivots: Prevents dust ingress and ensures smooth, reliable brake operation with minimal maintenance.
- Manual Release Mechanism: A standard feature on our brakes, allowing for safe manual release during maintenance or power outages.
- Status Monitoring Switches: Options for limit switches to indicate brake open/closed status and lining wear are crucial for integration into modern PLC control systems and predictive maintenance schedules.
Quick Selection Reference Table
| Application | Primary Challenge | Recommended Brake Solution | Our Product Series |
|---|---|---|---|
| Casting / Hot Metal Crane (Main Hoist) | Extreme safety, high temp, heavy load | Heavy-duty fail-safe drum or disc brake | YWZ9, YWZ13, SDBH_I |
| Gantry / Trolley Travel | Shock loads, dust, reliability | Robust electro-hydraulic drum brake | YWZ4, YWZ8 |
| Rolling Mill / Coiler | Tension control, emergency stop | Fast-acting pneumatic/hydraulic disc brake | CQP/QP Series, SH Series |
| Coke Oven Machinery | High ambient heat, dust, continuous duty | Durable, sealed electro-hydraulic drum brake | YWZ4 |
Conclusion: Reliability Forged in Steel
In the steel industry, equipment failure is not an option. The braking systems you choose must be as tough and resilient as the steel you produce. By selecting brakes specifically engineered for high temperatures, heavy loads, and fail-safe operation, you are making a direct investment in the safety of your plant and the continuity of your production.
