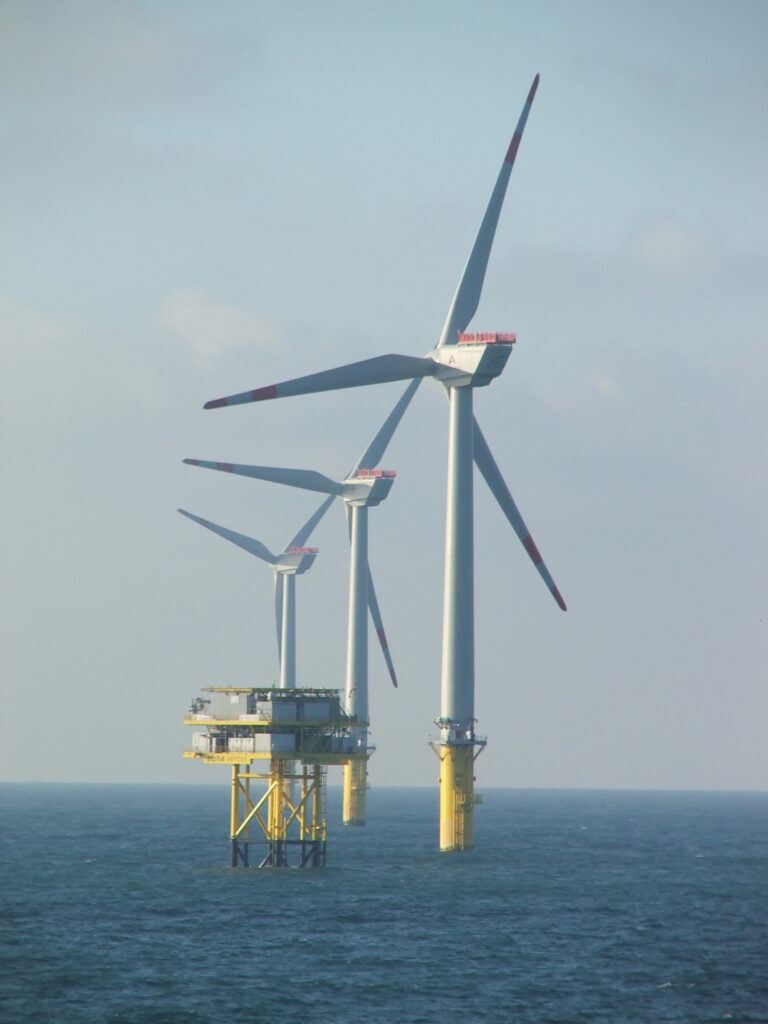

Wind turbines, towering symbols of clean energy, are sophisticated machines operating in some of the world’s most demanding environments. To ensure their safe operation, longevity, and efficiency, a robust and reliable braking system is not just a component—it’s a critical safety necessity. This article provides a technical deep-dive into the two primary braking systems in a wind turbine: the yaw brake and the rotor brake, and introduces engineered solutions designed to meet their stringent demands.
The Two Pillars of a Wind Turbine’s Braking System
A modern wind turbine’s braking strategy is twofold, relying on aerodynamic braking (pitching the blades) as the primary method and a mechanical braking system for precise control and ultimate safety. This mechanical system is comprised of two distinct sub-systems.
1. The Yaw Braking System: Precision in Orientation
The yaw system is responsible for orienting the nacelle to face the wind, maximizing energy capture. Once the turbine is correctly aligned, the yaw braking system engages to hold it firmly in place against the immense forces exerted by the wind on the rotor.
- Function: Primarily a static holding (parking) brake.
- Operational Demand: High number of braking cycles, but typically low energy dissipation per cycle.
- Key Requirement: Must provide consistent static braking torque to prevent unwanted movement, which could lead to component wear and power loss.
2. The Rotor Braking System: The Ultimate Safety Guardian
The rotor brake is the turbine’s ultimate safety device. While the blade pitch system handles normal shutdowns by feathering the blades, the rotor brake is activated for emergency stops, during grid failures, or to lock the rotor stationary for maintenance.
- Function: Both a dynamic emergency brake and a static parking brake.
- Operational Demand: Must be capable of absorbing and dissipating the massive kinetic energy of a spinning rotor in an emergency stop.
- Key Requirement: Absolute reliability and high thermal capacity. It must function flawlessly when called upon, often after long periods of inactivity.
Fail-Safe by Design: The Non-Negotiable Core of Turbine Brakes
For both yaw and rotor applications, the operating principle must be inherently “fail-safe.” This means the brake will engage automatically in the event of a power loss or hydraulic system failure. The industry standard is the spring-applied, hydraulically-released design.
In this system, a set of powerful springs mechanically applies the braking force. Hydraulic pressure is used to counteract the springs and release the brake. If hydraulic pressure is lost for any reason, the springs instantly engage the brake, ensuring the turbine is secured.
Engineered Braking Solutions for Wind Power Applications
At HIMC, we provide specialized hydraulic disc brakes engineered to meet the unique challenges of the wind power industry.
Our Solution for Yaw Control: The SH Series Hydraulic Fail-Safe Brake
The SH Series is specifically optimized for the demands of wind turbine yaw systems. These calipers are designed for high-frequency static holding with exceptional reliability.
- Consistent Holding Force: The SH Series provides braking torques ranging from 5,000 Nm to 40,000 Nm, ensuring the nacelle remains locked in position even under high wind loads.
- Optimized for Static Friction: They are fitted with specialized brake linings that offer a high static coefficient of friction, ideal for holding applications.
- Durability: Designed to operate with disc diameters from 500 mm to 1,200 mm and feature robust seals and an optional corrosion protection finish (up to C5 level) for offshore applications.
Explore the technical specifications and find the right model for your yaw system on our SH Series Hydraulic Fail-Safe Brakes product page.
Our Solution for High-Torque Rotor Braking: The SDBH_I Series
For the critical task of rotor braking, the SDBH_I Series offers superior dynamic braking capacity and thermal resistance. These brakes are built to handle the immense energy of an emergency stop.
- Superior Braking Torque: The SDBH_I Series delivers extreme braking force, with models providing up to 100,000 Nm of torque, suitable for multi-megawatt turbines.
- High Thermal Capacity: The design facilitates heat dissipation, preventing brake fade during high-energy dynamic stops. It is typically installed on the high-speed shaft of the drivetrain to leverage the gearbox ratio.
- Certified Safety: Built with a focus on reliability, the SDBH_I series ensures the rotor can be brought to a complete and safe standstill for maintenance or during emergencies. A hydraulic release pressure of approximately 160-180 bar ensures a swift and powerful spring-applied response.
Download datasheets and view performance curves for our SDBH_I Series Hydraulic Fail-Safe Disc Brakes here.
Key Technical Considerations for Selecting Wind Turbine Brakes
When specifying a braking system, engineers must consider:
- Required Braking Torque: Calculated based on drivetrain characteristics, wind loads, and safety factors.
- Environmental Conditions: Onshore vs. offshore applications demand different levels of corrosion protection (ISO 12944).
- Lining Material: Must balance friction coefficient, wear rate, and performance in varying temperatures.
- Maintenance & Accessibility: Brakes should be designed for easy inspection and pad replacement to minimize turbine downtime.
To simplify the selection process, the table below provides a side-by-side comparison of our primary braking solutions for wind energy applications:
Quick Selection Reference Table: Wind Turbine Brakes
| Parameter | SH Series Hydraulic Fail-Safe Brake | SDBH_I Series Hydraulic Fail-Safe Brake |
|---|---|---|
| Primary Application | Yaw System Braking (Nacelle Orientation Holding) | Rotor Braking (Emergency Stop & Parking) |
| Main Function | Primarily Static Holding | Dynamic & Static Braking |
| Design Focus | High-frequency static cycling, consistent holding force, and long-term reliability. | Maximum energy dissipation, high thermal capacity, and ultimate emergency torque. |
| Braking Torque Range | 5,000 Nm – 40,000 Nm | Up to 100,000+ Nm |
| Operating Principle | Fail-Safe (Spring-Applied, Hydraulically-Released) | Fail-Safe (Spring-Applied, Hydraulically-Released) |
| Ideal For | Ensuring precise and stable nacelle alignment against wind forces. | Critical safety applications requiring high-energy emergency stops and secure rotor locking for maintenance. |
| Learn More | View SH Series Details » | View SDBH_I Series Details » |
Conclusion
The yaw and rotor braking systems are fundamental to the safety and operational integrity of any wind turbine. By understanding their distinct roles and insisting on a fail-safe design principle, operators can ensure their assets are protected. Our SH and SDBH_I Series brakes provide the reliable, engineered performance required to hold and stop these powerful machines safely.
