The humble brake pad is one of the most critical components in any industrial machine. It’s the point of contact where kinetic energy is converted into thermal energy, bringing thousands of pounds of equipment and payload to a safe, controlled stop. But not all friction materials are created equal.
The science behind these materials is a complex balance of performance, durability, and safety. Understanding the differences is key to ensuring the reliability of your equipment and the safety of your operations. This guide explores the evolution of brake lining materials and helps you understand why the right choice—and the right supplier—is paramount.
A Brief History: The Move from Asbestos to Modern Composites
For decades, asbestos was the material of choice for brake linings due to its excellent heat resistance and low cost. However, the severe health risks associated with it led to a global phase-out. This necessary change spurred innovation, leading to the advanced, asbestos-free friction materials we rely on today. Modern materials are engineered to not only meet but exceed the performance of their predecessors, with the added benefit of being environmentally safe.
Understanding the Core Types of Friction Materials
Industrial brake pads are sophisticated composites, blending various elements to achieve specific performance characteristics. They generally fall into three main categories.
1. Organic Brake Linings (NAO)
Also known as Non-Asbestos Organic, these are the softest of the friction materials. They are made from a blend of fibers like glass, rubber, and Kevlar, bound together with a high-temperature resin.
- Characteristics: They offer smooth, quiet engagement and are generally less abrasive to the brake disc or drum.
- Limitations: Their lower heat tolerance makes them susceptible to “brake fade” under heavy, repeated use. They also tend to wear faster in demanding industrial environments.
- Best For: Lighter-duty applications or where noise reduction is a primary concern.

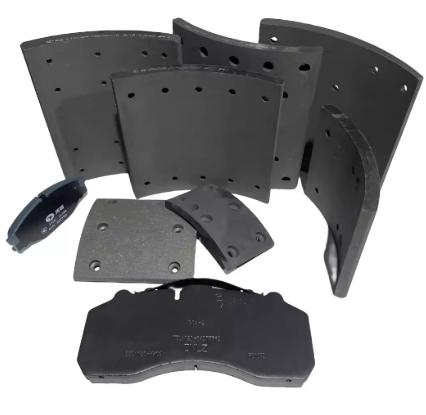

2. Semi-Metallic Brake Linings
This is the workhorse of the industrial braking world. Semi-metallic pads contain a high percentage (30-65%) of metal fibers, such as steel wool, copper, or iron powder, mixed with fillers and binders.
- Characteristics: The metal content provides excellent thermal conductivity, drawing heat away from the braking surface to prevent fade. They offer high durability and a strong, consistent friction coefficient across a wide range of temperatures.
- Limitations: They can be more abrasive to the brake disc/drum than organic pads and may produce more noise and dust.
- Best For: A vast range of heavy-duty applications, including overhead cranes, hoists, conveyors, and general industrial machinery.

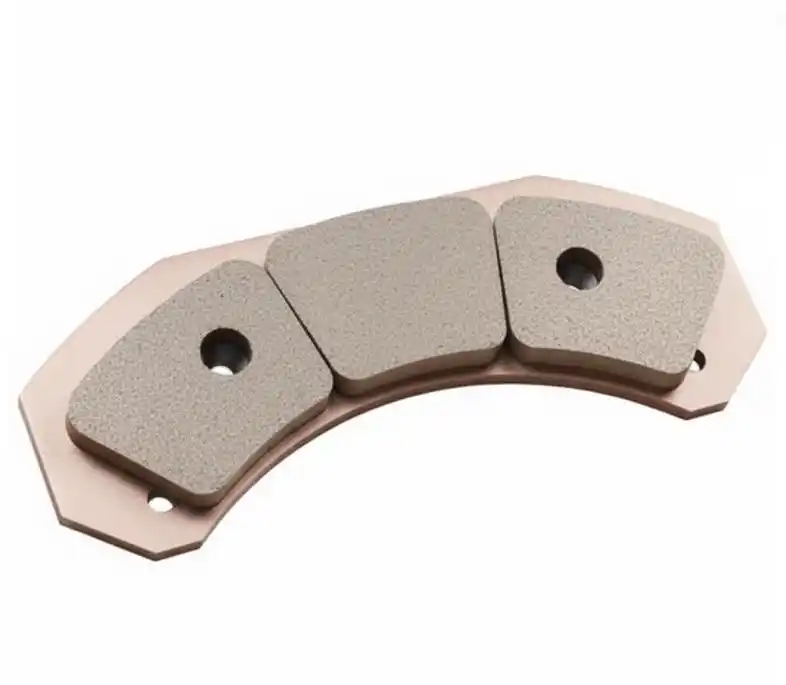

3. Sintered Metal Brake Linings
Sintered materials represent the pinnacle of performance for extreme conditions. They are not held together by a resin binder. Instead, metallic powders (like copper) are fused together under immense heat and pressure.
- Characteristics: They offer the highest heat resistance and a very stable friction coefficient, even when wet, oily, or dirty. They are incredibly durable and resistant to fade.
- Limitations: Their aggressive nature causes the most wear on brake discs, and they are typically the most expensive option.
- Best For: The most demanding applications, such as mining equipment, high-speed wind turbine rotors, and heavy-duty earthmovers where performance cannot be compromised.
At a Glance: Comparing Friction Materials
To simplify the selection process, here’s a chart comparing the key performance metrics.
| Feature | Organic (NAO) | Semi-Metallic | Sintered Metal |
|---|---|---|---|
| Heat Resistance | Low-Medium | High | Very High |
| Wear Rate | High | Medium | Low |
| Friction Stability | Medium | High | Very High |
| Abrasiveness | Low | Medium | High |
| Primary Use | Light Duty | Heavy Duty | Extreme Duty |
The Critical Conclusion: Why OEM Spare Parts Are Non-Negotiable
Seeing this complexity, it becomes clear that a brake pad is not a commodity. It is an engineered component of a larger system. The brake manufacturer meticulously designed the actuator, disc, and friction material to work in perfect harmony.
Using a generic, aftermarket brake pad can introduce dangerous variables:
- Mismatched Friction Coefficient: Too low, and the stopping distance increases. Too high, and the braking becomes jerky, potentially damaging equipment.
- Poor Heat Dissipation: An improperly formulated pad can lead to rapid brake fade in an emergency, resulting in catastrophic failure.
- Accelerated Wear: A cheaper pad might save money initially but will wear out faster and cause expensive damage to your brake discs or drums, leading to more downtime.
Your industrial brake is a safety-critical device. Trusting genuine, Original Equipment Manufacturer (OEM) spare parts is the only way to guarantee that the performance and safety characteristics engineered into the brake are maintained throughout its service life.
Make an Informed Decision
The science of friction materials is deep, but the takeaway is simple: the right material in the right application saves money, reduces downtime, and, most importantly, ensures safety.
If you have any questions about the best braking solution or the correct friction material for your specific machinery, our engineering team is ready to help.
