In any heavy industrial setting, consistent performance is key. While industrial brakes are built for durability, their reliability depends on a proactive maintenance schedule. Neglecting regular inspections can lead to decreased performance, unexpected downtime, and serious safety hazards.
To simplify this critical process, we’ve developed a comprehensive seasonal maintenance checklist. By dividing tasks into quarterly check-ups and a more in-depth annual service, you can ensure your braking systems remain in peak condition year-round. This guide will walk you through the essential steps, and you can download a printable PDF version at the end.
The Quarterly Check-Up: Your Foundation for Reliability
These checks should be performed every three months or as specified by your equipment’s duty cycle. They cover the most common wear items and are your first line of defense against unexpected failure.
1. Visual & Mechanical Inspection

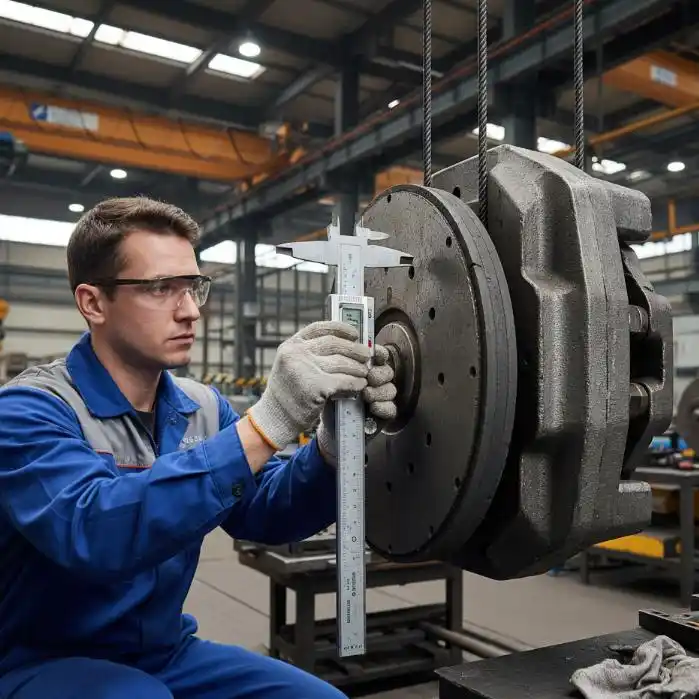

Check Friction Lining Thickness: This is your most critical wear item. Measure the pad/shoe thickness and compare it against the manufacturer’s minimum specification. Worn linings dramatically reduce torque.
Inspect Linings for Contamination: Look for any signs of oil, grease, or fluid on the friction surfaces. Contaminated linings will slip and must be replaced.
Examine Linkages and Pins: Ensure all pins are secure with their retaining clips and that linkages move freely without excessive play. Lubricate all pivot points according to the manual to prevent seizure.
Inspect Springs and Fasteners: Check all springs for signs of cracking or deformation. Verify that all mounting bolts and fasteners are tight.
2. Hydraulic / Pneumatic System Check
Check Fluid Level: For electro-hydraulic brakes, inspect the fluid level in the Ed or YT1 Series Thruster. A low level can indicate a leak and will cause performance issues.
Inspect for Leaks: Carefully examine all hoses, fittings, and seals on hydraulic or pneumatic systems for any sign of leakage. Even a small leak can lead to a loss of braking pressure.
3. Functional Test
Observe Operation: Actuate the brake several times and observe its movement. Does it engage and release smoothly and quietly? Any hesitation, jerky movements, or unusual noises warrant a closer inspection.
Confirm Full Release: Ensure the brake retracts fully when power is applied and does not drag on the disc or drum, which would cause severe overheating.
The Annual Deep Dive: A Comprehensive Service
Once a year, a more thorough inspection is necessary to address deeper wear and tear and reset the system for another year of reliable service. This includes all quarterly checks plus the following:
1. In-Depth Component Inspection

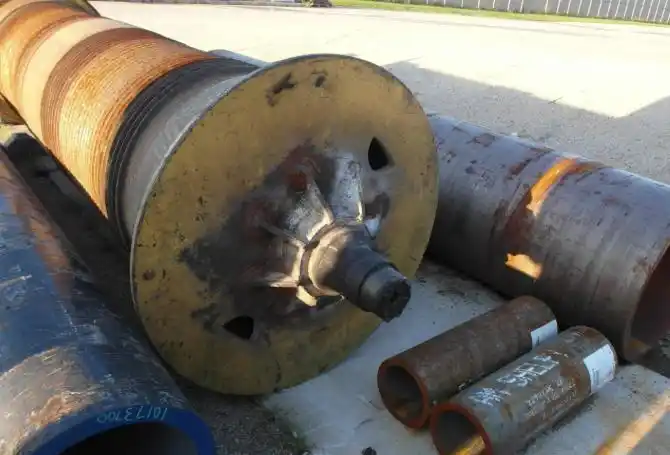

Inspect Brake Wheel or Disc Surface: Examine the surface of the ZDL Series Brake Wheel or BSP Brake Disc for scoring, heat cracks, or excessive grooving. A damaged surface will destroy new linings quickly.
Check Pin and Bushing Wear: Disassemble key pivot points and check for excessive wear (ovality) in the pins and bushings. Worn components can cause improper alignment and uneven pad wear.
Verify Structural Integrity: Inspect the brake arms, base, and other structural parts for any signs of cracks or fatigue, especially in high-vibration applications.
2. Full Fluid Replacement
Drain and Replace Hydraulic Fluid: Over time, hydraulic fluid degrades and absorbs moisture, reducing its performance and causing internal corrosion. Drain the old fluid completely and refill with the manufacturer-recommended type. This is crucial for maintaining the health of your hydraulic thrusters and actuators.
3. Check and Re-Adjust Settings
Verify Torque Settings: If you have the equipment (like a torque wrench), verify that the brake’s spring is set to the correct torque value for the application.
Reset Air Gap and Stroke: After inspecting or replacing parts, always re-adjust the brake’s air gap and actuator stroke according to the installation manual to ensure optimal performance.
Download Your Free Printable Checklist
To make this process as easy as possible, we’ve compiled all these checks into a single, print-friendly PDF. Keep it with your maintenance logs and use it to track your service history.
Don’t Let Maintenance Wait
Proactive maintenance isn’t an expense; it’s an investment in safety, uptime, and the longevity of your equipment. If you find worn or damaged components during your inspection, don’t compromise.
Visit our Spare Parts Page to find genuine replacement linings, seals, and thrusters, or Contact Our Support Team if you need expert assistance.
