Precision Braking for Industrial Applications

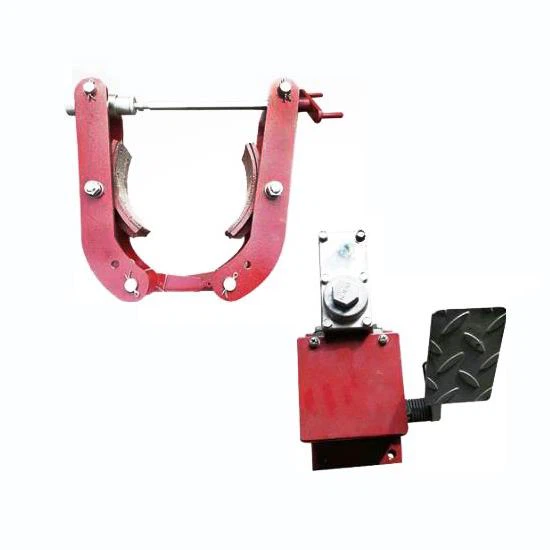

The TYWZ2 Series Foot Hydraulic Drum Brake is a cutting-edge braking solution designed for small and medium-sized cranes, offering unparalleled reliability and smooth operation in industrial environments. Engineered to meet the stringent JB/ZQ4388-1997 standards, this brake system ensures precise control, durability, and safety across various applications, including mining, metallurgy, construction, and port operations.
Key Features
- Normally Open Design: The TYWZ2 brake operates as a normally open system, providing smooth deceleration and braking without requiring constant power input.
- Interlocking Shoe Clearance Balancing: This innovative feature ensures equal clearance on both sides of the brake pads, preventing uneven wear and enhancing braking efficiency.
- Self-Lubricating Bearings: All major pivot points are equipped with self-lubricating bearings, reducing maintenance needs and extending the lifespan of the brake.
- Quick and Secure Pad Replacement: The brake pads are designed for easy insertion and removal, minimizing downtime during maintenance.
- Corrosion-Resistant Options: For outdoor or harsh environments, corrosion-resistant models are available to withstand rain, snow, and corrosive gases.
Technical Specifications
The TYWZ2 Series is available in multiple models to suit diverse operational needs:
| Model | Braking Torque (N·m) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| TYWZ2-200 | 0-200 | 440 x 320 x 300 | 42 |
| TYWZ2-300 | 0-400 | 610 x 380 x 360 | 56 |
| TYWZ2-315 | 0-400 | 610 x 390 x 375 | 60 |
| TYWZ2-400 | 0-800 | 780 x 445 x 445 | 84 |
Applications
The TYWZ2 Series is specifically designed for:
- Cranes: Ideal for small and medium-sized cranes used in construction, ports, and mining operations.
- Industrial Machinery: Ensures smooth and accurate braking for heavy-duty equipment.
- Outdoor Environments: Corrosion-resistant models are perfect for areas exposed to harsh weather conditions.
Advantages
- Compliance with Industry Standards: Fully adheres to JB/ZQ4388-1997 specifications, guaranteeing compatibility and reliability.
- Enhanced Safety: Provides stable braking performance, reducing risks in critical operations.
- Energy Efficiency: Operates without the need for electrical power, making it suitable for remote or power-limited locations.
- Customizable Options: Available with various hydraulic cylinder configurations to meet specific operational requirements.
Operating Conditions
- Temperature Range: -20°C to +50°C
- Humidity: Air relative humidity ≤ 90%
- Environment: Suitable for non-flammable, non-explosive, and non-corrosive atmospheres. For corrosive environments, opt for the anti-corrosion model.
Why Choose the TYWZ2 Series?
The TYWZ2 Series Foot Hydraulic Drum Brake is trusted by industries worldwide for its robust design, reliable performance, and ease of maintenance. Whether you’re managing crane operations in a bustling port or ensuring safety in a mining facility, this brake system delivers the precision and durability you need.
