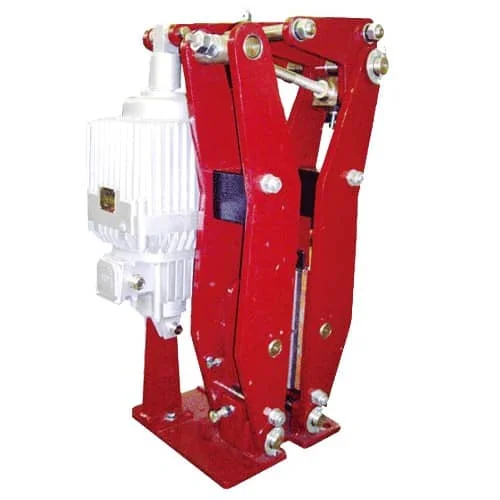

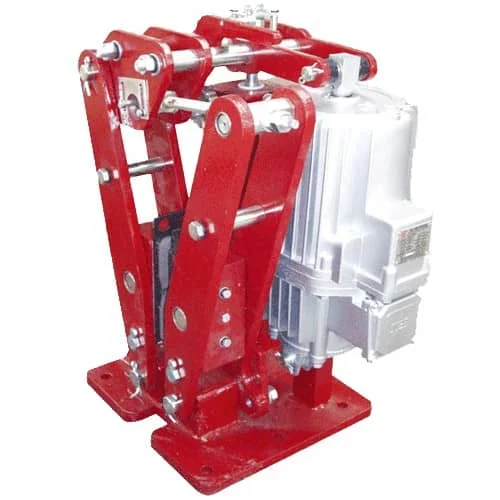

YPZ2 Electric Hydraulic Disc Brake

The YPZ2 Electric Hydraulic Disc Brake is a sophisticated braking system that adheres to both German DIN15435 standards and, for certain models, the JB/T7020-2006 standard. This system is designed to provide reliable and efficient braking solutions across various industrial applications. Here, I will break down the advantages, applications, working principles, and usage instructions of the YPZ2 brake, incorporating specific details from the attached files.

Advantages

1. Compliance and Standards: The YPZ2 I, II, and III models comply with the German DIN15435 standard, while the IV, V, and VI models comply with both the DIN15435 and JB/T7020-2006 standards, ensuring high-quality performance and safety.
2. Uniform Clearance Device: The I, II, and III models feature an equal clearance device that maintains equal distances between the brake pads on both sides during use. The IV, V, and VI models include an interlock equal clearance device, preventing one-side brake pad floating issues and ensuring consistent braking performance.
3. Self-Lubricating Bearings: All major pivot points are equipped with self-lubricating bearings, resulting in high transmission efficiency and long service life without the need for additional lubrication.
4. Adjustable Brake Torque: These brakes come with a brake torque scale, allowing for direct display and easy adjustment of braking force.
5. Asbestos-Free Brake Pads: The brakes use asbestos-free pads, which are inserted for easy and quick replacement.
6. Automatic Wear Compensation: The brake pads have an automatic wear compensation device to maintain constant clearance and braking torque over time.
7. Additional Functionalities: Optional features include manual release, release and closure limit switches, and wear limit switches for precise control and feedback.
8. Delayed Closure: The Ed series actuator supports delayed closure for smoother braking.

Applications

YPZ2 brakes are ideal for environments requiring robust and reliable braking systems, such as:

• Industrial machinery
• Hoisting equipment
• Cranes
• Conveyor systems

These brakes are particularly suitable for use in environments with a temperature range of -20°C to 50°C, provided they are free from flammable, explosive, and corrosive gases, and where the relative humidity does not exceed 90%.

Working Principles

The YPZ2 brake operates using an electric hydraulic actuator, typically from the Ed series, such as the Ed23/5 or Ed30/5 models, depending on the required braking force and application. The actuator converts electrical energy into hydraulic pressure that engages the brake pads onto the disc, providing the necessary braking force. The delay valve in the actuator allows for controlled closing, ensuring smooth operation.

Usage Instructions

1. Installation: Ensure the brake is installed in a clean environment free of corrosive substances. The mounting surface must be level and sturdy to support the brake’s weight and operational forces.
2. Operational Setup: Connect the brake to a suitable 380V, 50Hz three-phase AC power supply, or specify alternative power needs at the time of ordering. Ensure that the actuator is properly lubricated with YH-10 aviation hydraulic oil if operating at temperatures below -20°C.
3. Adjustments: Use the brake torque scale to adjust the braking force as needed. Ensure that the clearance between the brake pads is uniform to maintain optimal performance.
4. Maintenance: Regularly check the wear of the brake pads and utilize the automatic wear compensation feature to adjust for any discrepancies. Replace pads promptly when they reach their wear limit.
5. Additional Features: Utilize the manual release and limit switches for enhanced control and safety monitoring. In outdoor or corrosive environments, opt for corrosion-resistant models to prolong the brake’s lifespan.

Model Designation Explanation

1. YPZ2: Series designation for the Electric Hydraulic Disc Brake.
2. [ ]: Series Number (I, II, III, IV, V, VI) indicating the type of brake:
   • I: Light-duty model
   • II: Medium-duty model
   • III: Heavy-duty model
   • IV: Very heavy-duty model
   • V: Ultra heavy-duty model
   • VI: Super heavy-duty model
3. [Diameter (mm)]: The diameter of the brake disc (e.g., 630 mm).
4. [Functionality Code]: Indicates additional features of the actuator:
   • E: Standard actuator type (Ed series)
   • B: Explosion-proof actuator type
5. [Actuator Configuration]:
   • L: Left-hand configuration
   • R: Right-hand configuration
6. [Actuator Model Number]: Specific model designation of the actuator (e.g., Ed201/6).
7. [Manual Release]: Indicates if a manual release feature is included:
   • S: Manual release present
   • N: No manual release
8. [Additional Features]: Additional functionality or options available for the actuator.

Example Configuration

• Example: If the order is for a brake with a disc diameter of 630 mm, center height of 370 mm, equipped with an automatic wear compensation device, an opening display limit switch, a manual release feature, in a right-hand configuration, using the actuator Ed201/6 with a descending valve, the order designation would be:YPZ2-630III/E201S-MK1S.

This designation systematically conveys all critical specifications for ordering the YPZ2 Electric Hydraulic Disc Brake.

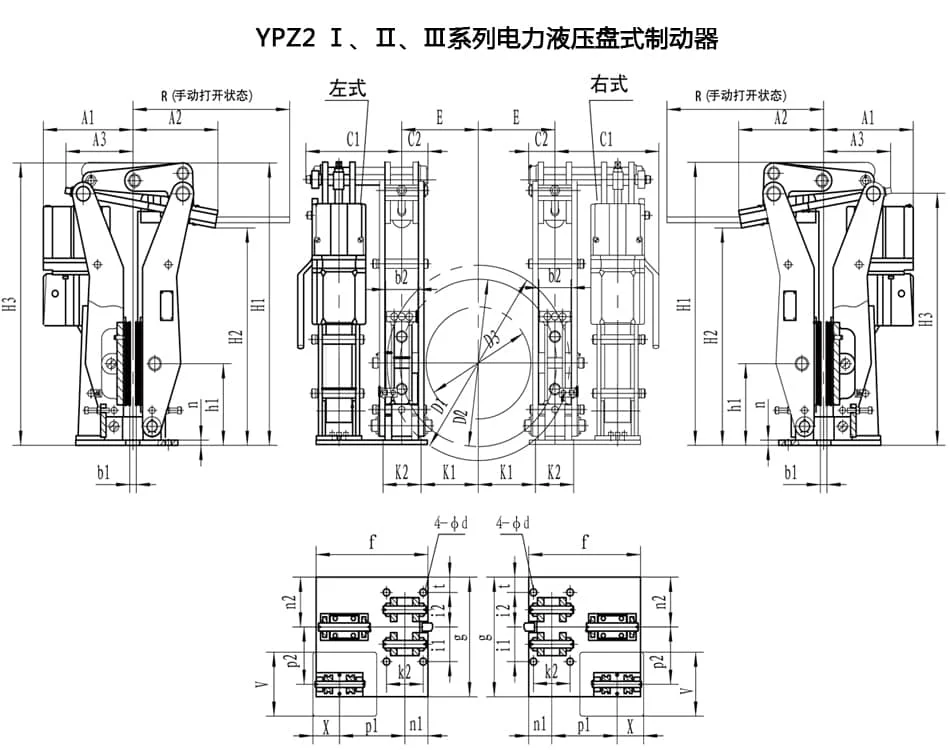

Specific Model Details

YPZ2 I Electric Hydraulic Disc Brake

• Compliance: Conforms to DIN15435 standards.
• Actuator Models: Typically uses Ed23/5, Ed30/5.
• Maximum Braking Torque: Up to 270 Nm (depending on the actuator used).
• Brake Disc Diameter: Suitable for discs with a diameter of 315 mm.
• Key Dimensions:
  • H1: 710 mm
  • H2: 515 mm
  • H3: 630 mm
  • b2: 70 mm
  • Weight: Approximately 80 kg.
• Applications: Ideal for lighter industrial applications, such as smaller machinery and equipment where moderate braking force is required.

YPZ2 II Electric Hydraulic Disc Brake

• Compliance: Conforms to DIN15435 standards.
• Actuator Models: Typically uses Ed50/6, Ed80/6.
• Maximum Braking Torque: Up to 1025 Nm (depending on the actuator used).
• Brake Disc Diameter: Suitable for discs with a diameter of 450 mm.
• Key Dimensions:
  • H1: 985 mm
  • H2: 740 mm
  • H3: 870 mm
  • b2: 120 mm
  • Weight: Approximately 160 kg.
• Applications: Suitable for medium-duty industrial applications, such as conveyors, hoisting equipment, and larger machinery requiring higher braking forces.

YPZ2 III Electric Hydraulic Disc Brake

• Compliance: Conforms to DIN15435 standards.
• Actuator Models: Typically uses Ed121/6, Ed201/6.
• Maximum Braking Torque: Up to 6305 Nm (depending on the actuator used).
• Brake Disc Diameter: Suitable for discs with a diameter of 630 mm or larger.
• Key Dimensions:
  • H1: 1170 mm
  • H2: 910 mm
  • H3: 1045 mm
  • b2: 120 mm
  • Weight: Approximately 310 kg.
• Applications: Designed for heavy-duty industrial applications, including large cranes, port equipment, and other machinery that demands significant stopping power.

General Features of YPZ2 I, II, III

Durable Construction: Built to withstand challenging industrial environments, ensuring long-term reliability and performance.

Equal Clearance Device: All models are equipped with an equal clearance device that maintains consistent spacing of the brake pads, ensuring even wear and optimal performance.

Automatic Wear Compensation: Features an automatic wear compensation mechanism that adjusts for pad wear, maintaining effective braking force throughout the brake’s lifespan.

Manual Release Option: Each model includes a manual release function for emergency situations and maintenance.

By incorporating these details, users can effectively select and utilize the YPZ2 Electric Hydraulic Disc Brake for their specific industrial applications, ensuring efficient and safe operation.

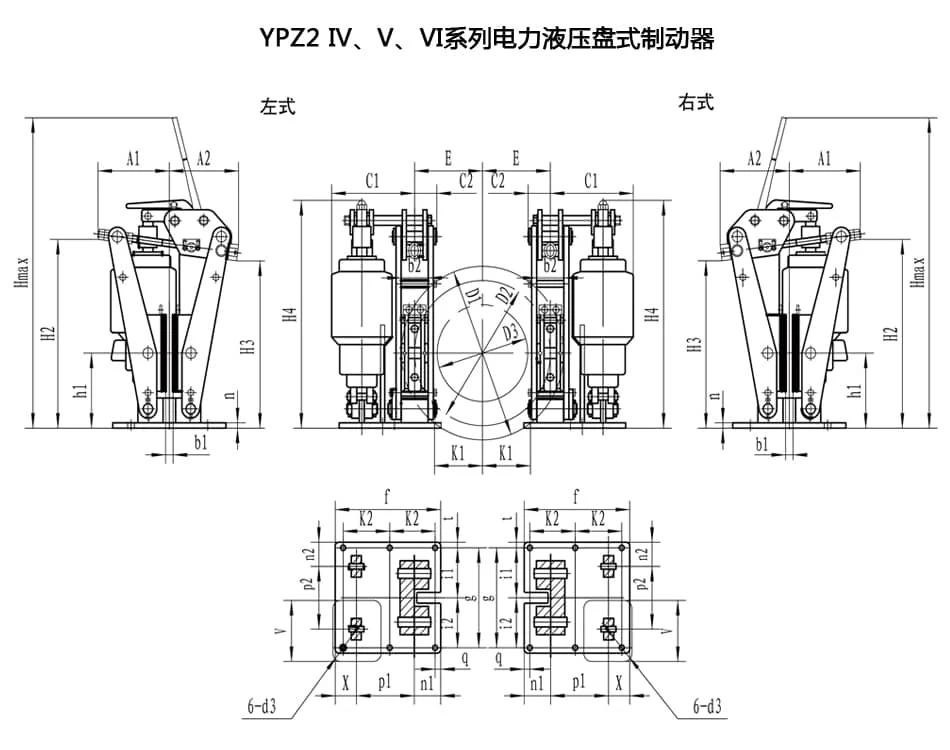

YPZ2 IV Electric Hydraulic Disc Brake

• Compliance: Conforms to DIN15435 and JB/T7020-2006 standards.
• Actuator Models: Typically uses Ed50/6, Ed80/6.
• Maximum Braking Torque: Up to 2700 Nm (depending on the actuator used).
• Brake Disc Diameter: Suitable for discs with a diameter of 450 mm.
• Key Dimensions:
  • H1max: 1100 mm
  • H2: 537 mm
  • H3: 474 mm
  • H4: 645 mm
  • b2: 75 mm
  • Weight: Approximately 355 kg.
• Applications: Ideal for heavy-duty industrial applications such as cranes and large machinery requiring high braking force.

YPZ2 V Electric Hydraulic Disc Brake

• Compliance: Conforms to DIN15435 and JB/T7020-2006 standards.
• Actuator Models: Typically uses Ed80/6, Ed121/6.
• Maximum Braking Torque: Up to 4195 Nm (depending on the actuator used).
• Brake Disc Diameter: Suitable for discs with a diameter of 450 mm.
• Key Dimensions:
  • H1max: 1500 mm
  • H2: 699 mm
  • H3: 636 mm
  • H4: 835 mm
  • b2: 108 mm
  • Weight: Approximately 450 kg.
• Applications: Suitable for applications requiring very high braking forces, such as mining operations and heavy lifting equipment.

YPZ2 VI Electric Hydraulic Disc Brake

• Compliance: Conforms to DIN15435 and JB/T7020-2006 standards.
• Actuator Models: Typically uses Ed201/6, Ed301/6.
• Maximum Braking Torque: Up to 7310 Nm (depending on the actuator used).
• Brake Disc Diameter: Suitable for discs with a diameter of 450 mm or larger.
• Key Dimensions:
  • H1max: 1500 mm
  • H2: 699 mm
  • H3: 636 mm
  • H4: 835 mm
  • b2: 108 mm
  • Weight: Approximately 480 kg.
• Applications: Designed for extremely demanding applications, such as in large machinery, port equipment, and other heavy-duty industrial settings.

General Features of YPZ2 IV, V, VI

1. Equal Clearance Device: All models feature a locking equal clearance device that ensures uniform spacing of the brake pads, preventing uneven wear and enhancing safety.
2. Automatic Wear Compensation: The brakes are equipped with a mechanism to automatically adjust for wear, maintaining optimal performance throughout their lifespan.
3. Manual Release Option: Each model includes a manual release feature for maintenance and emergency situations.
4. Durable Design: These models are built to withstand harsh industrial environments, ensuring long-term reliability and performance.

These specifications allow users to choose the appropriate YPZ2 model based on their specific application requirements and operational conditions.
