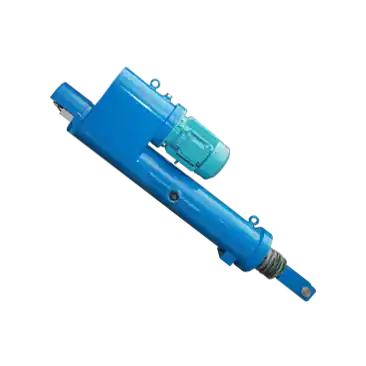

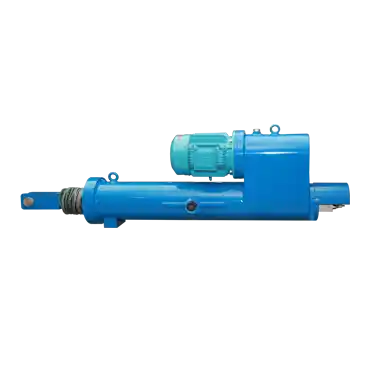

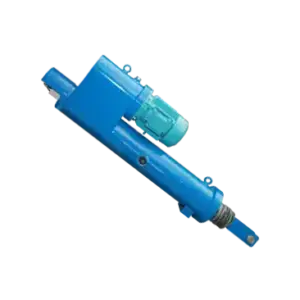

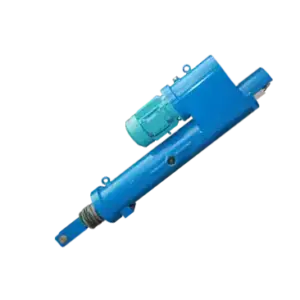

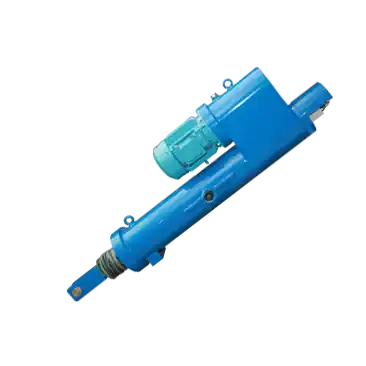

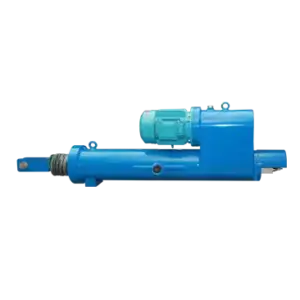

DYT Series Electro-Hydraulic Actuator

DYT electro-hydraulic actuators deliver strong, precise linear motion for heavy industry. Customizable thrust, stroke, and speed. Reliable, safe, compact.

  • Modèle : DYT-100, DYT-300, DYT-450, DYT-750, DYT-1000, DYT-1750, DYT-2500, DYT-3000, DYT-4000, DYT-5000, DYT-6000, DYT-8000, DYT-10000, DYT-15000, DYT-20000
  • Fonction : Motor drives pump, oil moves piston, rod extends / retracts.
  • Application : Metallurgy, mining, power, coal, machinery, transport, cement, chemical, water.
Contactez le responsable des ventes

Les DYT Series Electro-Hydraulic Actuator is a high-performance linear drive solution engineered for demanding industrial automation. Integrating mechanical, electrical, and hydraulic systems, the DYT series delivers precise, powerful, and reliable reciprocating motion. With a rated thrust range from 100 kgf to 20,000 kgf and stroke lengths from 5 mm to 3,000 mm, this series is ideal for applications requiring robust force, accurate positioning, and remote or automated control.

Model Comparison Table

ModèleRated Thrust (kgf)Rated Pull (kgf)Push Speed (mm/min)Pull Speed (mm/min)Motor Power (kW)Stroke Range (mm)Speed Range (mm/min)
DYT-1001007570/110/18590/145/2450.555–8000–250
DYT-30030020045/70/11565/100/1450.55/0.755–10000–250
DYT-45045030045/70/11565/100/1450.55/0.755–10000–250
DYT-75075050045/70/10065/100/1650.75/1.15–15000–150
DYT-1000100070045/70/10065/100/1651.1/2.25–15000–150
DYT-17501750130045/70/10065/100/1651.5/2.25–15000–150
DYT-25002500190036/60/9753/90/1441.5/3.05–20000–100
DYT-30003000220045/7068/1082.2/3.05–25000–100
DYT-40004000300035/5553/852.2/3.05–25000–80
DYT-50005000380030/4539/632.2/3.05–25000–60
DYT-60006000450030/4533/523.0/4.05–30000–60
DYT-80008000650025/3833/473.0/4.05–30000–50
DYT-1000010000770025/3833/474.0/5.55–30000–50
DYT-15000150001150024/3333/425.5/5.55–30000–33
DYT-20000200001600023285.05–30000–23

Application Scenarios and Model Recommendations

1. Metallurgy – High-Temperature Furnace Doors

  • Requirements: High thrust, long stroke, remote and safe operation.
  • Recommended Models: DYT-6000 and above (≥6000 kgf thrust, up to 2000 mm stroke), equipped with dual hydraulic locks for secure positioning even during power loss.

2. Power Generation – Boiler Dampers and Flue Gates

  • Requirements: Medium thrust, stable movement, heat resistance.
  • Recommended Models: DYT-1750 to DYT-4000 (1300–3000 kgf thrust), adjustable speed for various damper opening/closing cycles.

3. Mining & Building Materials – Conveyor Tensioning, Silo Gates

  • Requirements: Frequent start/stop, moderate force, long stroke.
  • Recommended Models: DYT-750 to DYT-2500 (500–1900 kgf thrust, up to 1500 mm stroke), wide speed range for flexible adaptation.

4. Automated Production Lines – Clamping, Lifting, Rotating

  • Requirements: High precision, fast response, compact size.
  • Recommended Models: DYT-100 to DYT-450 (100–300 kgf thrust, up to 245 mm/min speed), ideal for integration into robotic and automated systems.

Value and Reliability

  • Comprehensive Model Coverage: From light-duty automation to heavy-duty industrial machinery, the DYT series offers a tailored solution for every application.
  • La sécurité avant tout : All models feature fail-safe hydraulic locking, ensuring position retention during power outages and maximizing operational safety.
  • Peu d'entretien : Fully sealed hydraulic circuits prevent oil leakage and contamination, supporting long-term operation in harsh environments.
  • Customizable: Speed, stroke, and motor power can be tailored to specific project requirements, supporting non-standard and challenging applications.

Real-World Case Studies

  • Steel Plant Furnace Door: DYT-10000 actuators (10,000 kgf thrust, 1800 mm stroke) integrated with PLCs for remote operation reduced annual maintenance from 12 to 2 interventions and cut failure rates by 80%.
  • Cement Plant Silo Gate: DYT-1750 (1300 kgf thrust, 70 mm/min speed) enabled 24/7 continuous operation with zero major failures over three years.

Conclusion

The DYT Series Electro-Hydraulic Actuator stands out for its transparent model data, broad adaptability, and proven reliability. By providing detailed specifications and real-world application insights, users can confidently select the optimal actuator for their automation needs, ensuring both performance and safety.

For detailed selection guides or custom engineering support, please contact our technical team.

Notez ce produit

Laissez le premier commentaire

Vous pouvez aussi aimer

FAQ à propos de DYT Series Electro-Hydraulic Actuator

Questions fréquemment posées

Questions les plus fréquemment posées par les clients qui ont acheté DYT Series Electro-Hydraulic Actuator.

  • What is the maximum thrust and stroke available for the DYT series?

    The DYT series offers maximum thrust up to 20,000 kgf and stroke lengths up to 3,000 mm, covering a wide range of heavy-duty applications.

  • Can the actuator speed be customized?

    Yes, push and pull speeds are customizable within each model’s range (e.g., 0–250 mm/min for DYT-100), allowing precise adaptation to application needs.

  • How does the DYT actuator ensure safety during power failure?

    All models feature a hydraulic locking mechanism that self-locks the actuator in position if power is lost, preventing unintended movement.

  • What are the typical industrial applications for DYT actuators?

    Common uses include furnace doors, damper control, conveyor tensioning, silo gates, clamping, lifting, and other linear or limited rotary motions in metallurgy, mining, power, cement, and chemical industries.

  • What maintenance is required for DYT actuators?

    Thanks to a fully sealed hydraulic system and high-quality components, maintenance is minimal—mainly periodic oil checks and seal inspections.

  • Can DYT actuators operate in harsh environments?

    Yes, the sealed design prevents dust, water, and contaminants from entering, making them suitable for high-temperature, high-humidity, and dusty conditions.

  • Are there options for position feedback or remote control?

    DYT actuators can be equipped with position sensors, limit switches, and integrated into PLC or DCS systems for remote monitoring and automated control.

  • How do I select the right DYT model for my application?

    Selection depends on required thrust, stroke, speed, installation space, and control needs. Consult the model table or contact technical support for tailored recommendations.

  • What is the typical response time or actuation speed?

    Actuation speed varies by model and load, with typical ranges from 23 mm/min (DYT-20000) up to 245 mm/min (DYT-100) under rated conditions.

  • Can the DYT actuator be mounted in any orientation?

    Yes, DYT actuators support horizontal, vertical, and inclined mounting, with custom brackets available for specific installation requirements.

Ces réponses sont conçues pour répondre à vos préoccupations de manière exhaustive, afin que vous puissiez investir en toute confiance dans la DYT Series Electro-Hydraulic Actuator pour vos applications critiques. si vous avez d'autres questions, veuillez contacter notre service clientèle 7/24.
